X (S) N-75X30 Dispersion Mixer for Rubber and Plastics

  • Model NO.: X(S)N-75X30
  • Control Type: PLC
  • Power Source: Electric
  • Motor Power: 110kw
  • Rotor Blade: Cast Steel ( Including Manganese and
  • Alloy Ring: Alloy Steel
  • Motr Brand: Siemens
  • Relay Brand: Schneider
  • Transport Package: Wooden Case + Steel Frame
  • Origin: China
  • Warranty: 5 Years
  • Automatic Grade: Automatic
  • Type: Rubber Mixer
  • Dimension(L*W*H): 3700X2370X3200
  • Rotor Speed (Front/Rear): 30/24.5
  • Material of The Whole Body: 45# Steel
  • PLC Brand: Omron
  • Trademark: RUNNING
  • Specification:   X(S)N-75X30
  • HS Code:
Product Description
Production Name: X(S)N-75X30 Dispersion Mixer For Rubber and Plastics
Model: X(S)N-75X30
Application:
X(S)N-75X30 Dispersion Mixer For Rubber and Plastics
Rubber tyres
Rubber product for automobile (oil seal, body seal, gasket, belt, hose, tube and etc)
Electric wires (rubber, plastic and wire harness and etc)
Belt (power transmission belt, conveyor belt and etc)
Roll (rubber, plastic, printing, copying machine and etc)
Rubber product for medical (plug, cap, glove, dental and etc)
Sporting goods (golf ball, athletic balls and etc)
Food (chewing gum)
Salient Features
1. Rotor wings are welded by hard chrome and carbide alloy.
2. Abrasion proof and corrosion proof.
3. Rubber stock are discharged by tilting 140 degrees.
4. High efficiency, energy saving and saving occupied space.
5. Imported brand PLC control ensure good performance.
6. Interlock protection ensure low personal injury.
7. Good sealing , no leaking
7. With CE certificate.

Technical Parameters

Model
X(S)N-3×32
X(S)N-5×32
X(S)N-10×32
X(S)N-20×32
X(S)N-25×32
X(S)N-35×30 		X(S)N-55×30

X(S)N-75×30 		X(S)N-110×30

X(S)N-150×30

Total volume of mixing chamber(L) 		 8  15  25  45  55  75  125  170  250  325

Working volume of mixing chamber(L) 		 3  5  10  20  25  35  55  75  110  150

Driving motor power(KW) 		 5.5  11  22  37  37  55  75  110  185  220

Tilting motor power(KW) 		 0.55  1.1  1.1  1.5  1.5  2.2  2.2  3  5.5  11
 Tilting angle  140  140  140  140  140  140  140  140  140  135

Rotational speed of the rotor (front /rear)(r/min)
32/24.5
32/23.5
32/25
32/27
32/27
30/24.5
30/24.5
30/24.5
30/24.5
30/24.5

Pressure of compressed air
0.5~0.8
0.6~0.8
0.5~0.8
0.6~0.8
0.6~0.8
0.5~0.8
0.6~0.8
0.6~0.8
0.6~0.8
0.6~0.8

Capacity of compressed air(m3/min)
≥0.3
≥0.5
≥0.5
≥0.7
≥0.7
≥0.9
≥1.0
≥1.0
≥1.5
≥1.0

Pressure of cooling water (rubber mixing )(mpa)
0.2~0.4
0.2~0.4
0.2~0.4
0.2~0.4
0.2~0.4
0.3~0.4
0.3~0.4
0.3~0.4
0.3~0.4
0.2~0.4

Pressure of heating steam (plastics mixing )(MPa)
0.5~0.8
0.5~0.8
0.5~0.8
0.5~0.8
0.5~0.8
0.5~0.8
0.5~0.8
0.5~0.8
0.5~0.8
0.4~0.8
 Dimensions(L*H*M)mm  2000*1000*2220  1850*1200*2580  2640*1650*2350  2675*1650*2560  2675*1650*2560  3200*1900*2950  3230*1927*2958  3325*2615*3105  4075*2712*3580  4250*2750*4106
 Gross weight(t)  ~2  ~2.1  ~3.3  ~4  ~4.5  ~6.3

Structural Features
1. An Automatic temperature and time control system to provide 100% mixing effect.
2. Easy to clean chamber and easy color changing.
3. In 6-10 minutes/batch output equivalent to 2/3 units if mixing roller.
4. Pressurized and sealed mixing chamber to provide high mixing performance and prevent environmental pollution.
5. Easy installation, operation and maintenance to lower the running cost.

X (S) N-75X30 Dispersion Mixer for Rubber and Plastics
X (S) N-75X30 Dispersion Mixer for Rubber and Plastics


Services Commitment
1. Our engineers can design target machines for you and send the drawing to confirm.
 2. In the process of production, we will take photos and send to customers for you tracking.
3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
4. We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
 5. We supply overseas technical support
 6.Test Machine Before Delivery, you only need to connect the wires to the outside the control cabinet.

FAQ
1. Delivery time of the rubber machines?
 This is specially designed machine according to your specific requirement.
 From engineer designing to production completion, it needs about 25 to 35 days.

2. What does your factory do regarding quality control?
 We pay much more importance to quality control from the very beginning to the end of production.
 Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?
 Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?
 Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
 Small machine usually takes within 2~3 days.
 Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
 The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport.
We will pick up you at the airport.

Contact Us

 X (S) N-75X30 Dispersion Mixer for Rubber and Plastics






What`s the LED light?

LED is abbreviation of Light Emitting Diode, it is a new technology developed the middle of the 20th century. It is direct light relies on the electrons of semiconductor heterojunction removed by barrier energy. The light produced by LED is luminescence process which does not generate heat, the energy conversion efficiency is close to one hundred percent, long service life, and the LED light is the continuous development of lighting technology direction.


LED light-emitting principle

Light-emitting diodes (led) core part is composed of p-type and n-type semiconductor chips, between the p-type and n-type semiconductor has a transition layer, called the p-n junction. In some of the semiconductor PN junction, the minority carrier injection compound with majority carrier will release excess energy in the form of light, so as to directly convert the electric energy to light energy. PN junction to add reverse voltage, and minority carrier injection, so don't shine.


Advantages of LED lamp (light):

Voltage: LED light use the low voltage power supply, single voltage between 1.9-4v, safer than using high voltage power supply of the power supply.


Effectiveness: high light efficiency. In the laboratory the photosynthetic efficiency has reached 161lm/w (Cree), it is the highest photosynthetic efficiency in all lighting products.


Vibration resistance: LED is a solid-state light source, because of its particularity, the shock-resistant which other light source products can't compare with.


Stability: 100000 hours, droop for 70% of the original.


Response time: the response time of the LED Lights in nanoseconds, it is currently the fastest response time of all the light source products.


Environmental protection: no mercury and other harmful substances.


Color: the LED ribbon is quite narrow, light color pure, no variegated light, covering the whole visible light of the full band, and can be combined by the R\G\B into any want to visible light.


Now the LED light have been widely applied to Auto lamp, LED road light, LED street right, LED square lamp, Led Tunnel Lamp, LED Garden lamp, LED Corridor lamp, LED Mining Light, LED table lamp, LED landscape lighting and LED screens.

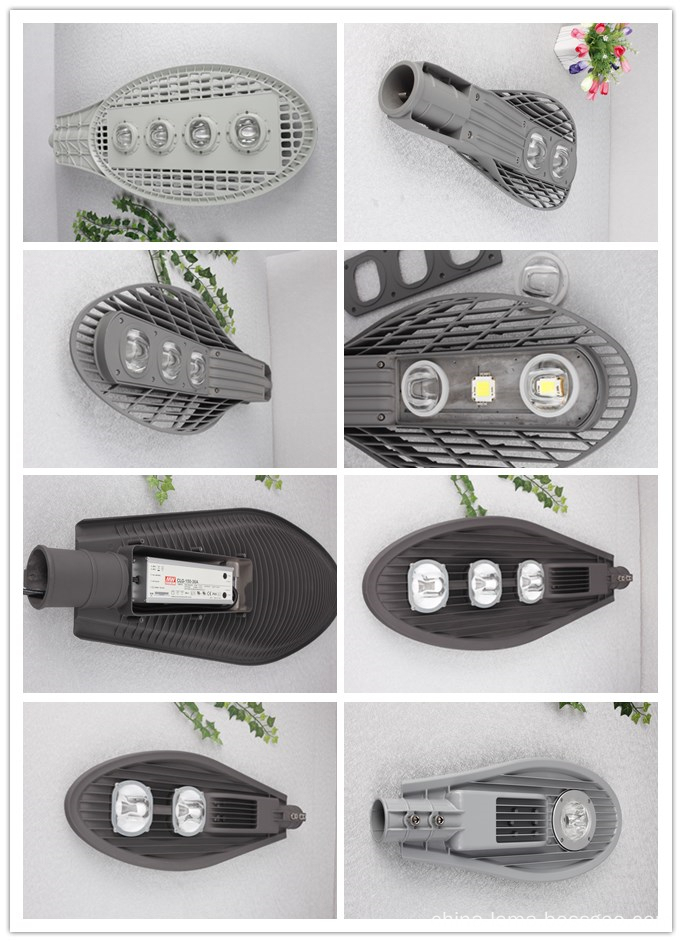

The some types LED lights my factory has produced as follow:
