1. Technical specifications of aircraft airline trolley:
The aircraft airline trolleys is designed for transporting food and drink to the passengers on an aircraft. It features a clean appearance, simple operation and good braking capability.
The 14 rows of integrated shelf supports allow for ample storage making food trays easy and convenient to load and remove.
The door of the meal cart can be completely opened until it is flush with the side (270 degree) - it is kept open and kept from swinging shut by magnets.
The back door of the meal cart can be equipped with cool air and hot air windows if the customer requires.
The upper part of the 220G and 330G meal carts are equipped with a dry-ice drawer in order to cool the cart for food storage when desired. The dry-ice option is both safe and sanitary.
The 220Y and 330Y aircraft meal carts without a dry-ice drawer. It is usually use in temperature below 20 degree
.
2. Cabinet
The cabinet is an insulated box and can keep both hot items hot or cool items cool. The door, side panels, bottom and top panel can be disassembled for replacement or maintenance - lowering the maintenance cost. The side panels and both of the doors are comprised of a hard foam core sandwiched between powder-coated or PVC-film protected aluminum panels. The inner surface of the side panels is aluminum sheet with integrated drawer guides. The aircraft company selects the decorative color adorning the outside. The top panel is made of a textured, stainless steel.
3. Door lock
Rugged but easy to operate; Latch door bar and three-point door bar with lead-filled hole and a hole for attaching a padlock are available.
4. Brake
The brake assembly is rugged; Each of the four wheels assemblies have stainless steel fittings with two rubber wheels _ each wheel with double bearings. Brakes are operated using a pair of red and green pedals (red for engaging the brake and green for releasing it).
|
Item No |
KJ-03 |
| Product Name | Inflight Airline Aluminum Alloy Oven Rack Baking Frame |
| Products Description | 1.Size:510*225*412mm 2.Material:Aluminum 3.High Quality,approved CAAC |
Automatic Scrap Copper Wire Granulator is a professional dry separation of waste wire and cable recycline.The machine has the features of large production capacity, low power consumption, the high rate of separation, a first feeding, multi machine collaboration. All controlled by PLC.
Automatic scrap Copper Wire Granulator has not only improved the purity of copper, but also reduced the pollution to the environment.

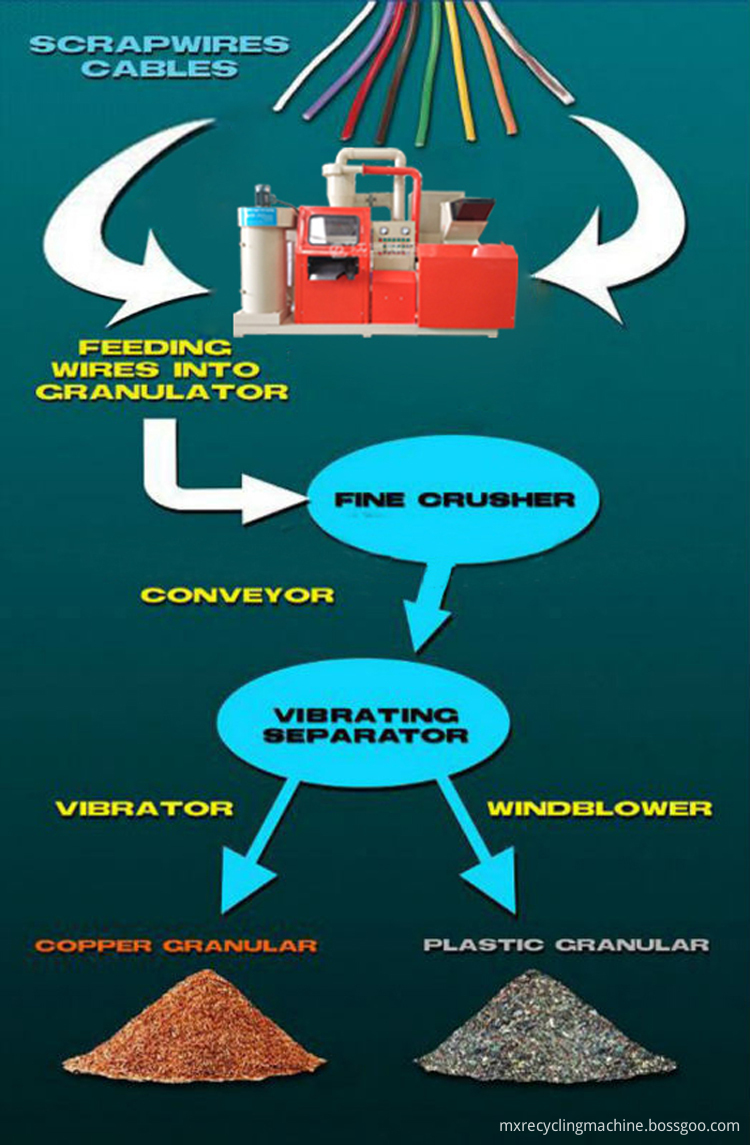

Working Principle of Copper wire Granulator:
The copper wires are directly put into the machine, it is cut into granules first. During this process, copper and plastic is mixed together. Then the granules are sent to vibration device for separation. Through wind blow and vibrator, the copper and plasticis are separated. Where the light (plastic) fraction is lifted and falls down the vibrating surface. The heavy (copper) parts remain lying on the surface of the screen and move upwards. Finally pure copper comes out from one side and pure plastic comes out from the other side.
Scrap Copper Wire Granulator
Compact Copper Wire Granulator,Copper Wire Granulator,Cable Wire Granulator ,Waste Copper Wire Recycling Machine
